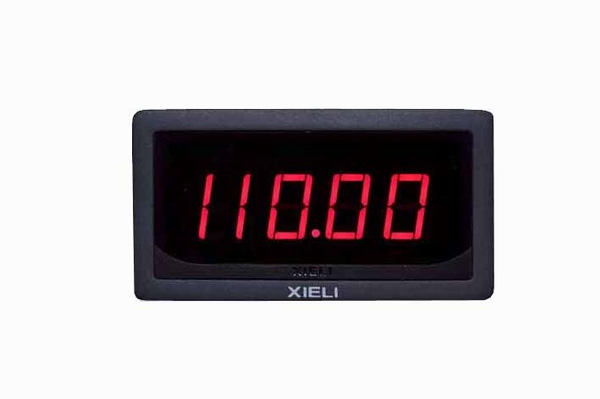

XL5145V series 4½ DC Digital Voltmeter
Tapping size(mm):76×39.5
Dimension(mm):W79×H42×D26
Install method: Snap-in
Power Supply: 5VDC 150mA
Maximum Count:19999(4 1/2 digit)
Display: 0.56" Ultra-bright LED display
Color:Red,Blue displays available
Operating temperature:0℃~60℃
Storage Temperature:-20℃~80℃
Relative humidity:20%~80%
Weight: 125~135g
Sample Frequency:400ms
|
Model
|
Digit display
|
Full measurement
|
Resolution
|
Accuracy
|
Input impedance
|
Max.input value
|
Power Supply
|
|
XL5145V－1
|
4½
|
±199.99mV
|
0.01mV
|
±0.05%+2digit
|
100MΩ
|
±3V
|
DC 5V
|
|
XL5145V－2
|
4½
|
±1.9999V
|
0.1mV
|
±0.05%+2digit
|
100MΩ
|
±35V
|
DC 5V
|
|
XL5145V－3
|
4½
|
±19.999V
|
1mV
|
±0.05%+2digit
|
10MΩ
|
±250V
|
DC 5V
|
|
XL5145V－4
|
4½
|
±199.99V
|
10mV
|
±0.07%+2digit
|
10MΩ
|
±300V
|
DC 5V
|
|
XL5145V－5
|
4½
|
±300V
|
100mV
|
±0.2%+2digit
|
10MΩ
|
±400V
|
DC 5V
|
|
