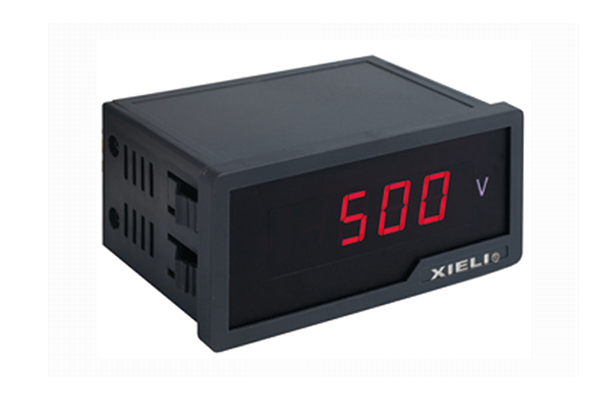

MB3300 Series AC voltmeter 3 1/2 digit, 0.56” LED display
Power Supply:AC220V±5%
Dimension(mm): W96×H48×D77
Panel Cutout(mm): 90×45
Mounting method: Snap-in
Display : 0.56" LED 1999(3 1/2 digit)
LED Color: Red,Blue,Green displays available
Operating temperature:0℃~50℃
Storage Temperature:-20℃~80℃
Relative humidity:20%~80%
Weight:300~330g
Sample Frequency:400ms
*Cuostomized products avaliable
|
Model
|
Range
|
Accuracy
|
Resolution
|
Impedance
|
Momentary Max. Input
|
Power Supply
|
|
MB3301
|
AC199.9mV
|
±0.5%+3digit
|
100uV
|
10MΩ
|
AC10V
|
220vac
|
|
MB3302
|
AC1.999V
|
±0.5%+3 digit
|
1mV
|
100kΩ
|
AC35V
|
220vac
|
|
MB3303
|
AC19.99V
|
±0.5%+3 digit
|
10mV
|
10MΩ
|
AC250V
|
220vac
|
|
MB3304
|
AC199.9V
|
±0.5%+3 digit
|
100mV
|
10MΩ
|
AC500V
|
220vac
|
|
MB3305
|
AC500V
|
±1%+3 digit
|
1V
|
10MΩ
|
AC700V
|
220vac
|
|
