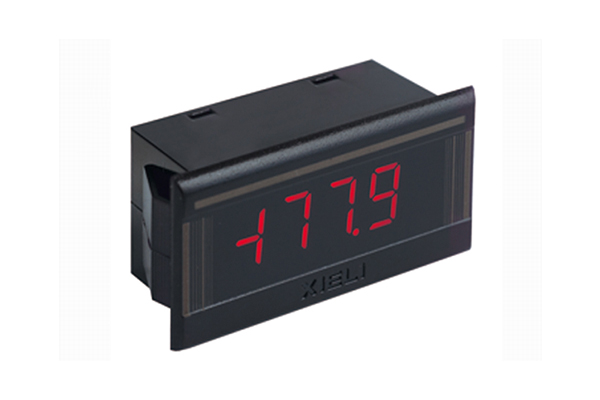

XL3600 series Super-mini 3½ Digit DC Digital Voltmeter
Power Supply:DC5V or DC12V
Dimension(mm):W50×H26×D23.5
Mounting hole(mm):46×23
Mounting method: Snap-in
Maximum Count:1999(3 1/2 digit)
Display:Ultra-bright 0.36" LED display
Color:Red,Blue, displays available
Character Height:9mm
Operating temperature:0℃~60℃
Storage Temperature:-20℃~80℃
Relative humidity:20%~80%
Sample Frequency:400ms
Weight:30-35g
|
Model
|
Digit display
|
Full measurement
|
Resolution
|
Accuracy
|
Input impedance
|
Max.input value
|
Power Supply
|
|
XL3600V-1
|
3½
|
±199.9mV
|
0.1Mv
|
±0.3 % +1Digit
|
100MΩ
|
±10V
|
DC 5V or DC12V
|
|
XL3600V-2
|
3½
|
±1.999V
|
1Mv
|
±0.3 % +1Digit
|
100MΩ
|
±35V
|
DC 5V or DC12V
|
|
XL3600V-3
|
3½
|
±19.99V
|
10Mv
|
±0.3 % +1Digit
|
1MΩ
|
±200V
|
DC 5V or DC12V
|
|
XL3600V-4
|
3½
|
±199.9V
|
100Mv
|
±0.5 % +1Digit
|
1MΩ
|
±300V
|
DC 5V or DC12V
|
|
