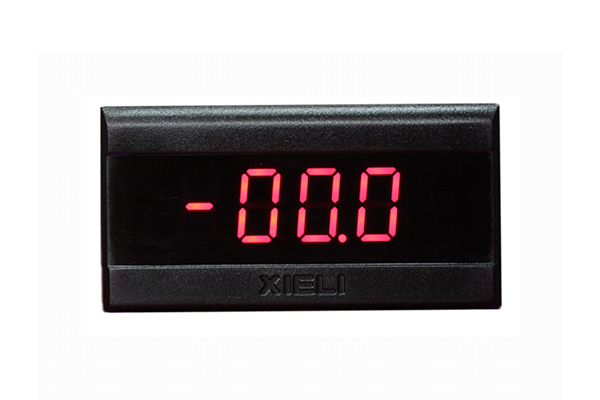

 XL3DC99V Series mini DC
voltmeter 3 digit, 0.36” LED display
Power Supply:DC5V or DC12V
Dimension(mm):W50×H26×D23.5
Mounting hole(mm):47×23
Mounting method: Snap-in
Maximum Count:999(3 digit)
Display:Ultra-bright 0.36" LED display
Color:Red,Blue displays available
Operating temperature:0℃~60℃
Storage Temperature:-20℃~80℃
Relative humidity:20%~80%
Sample Frequency:400ms
Weight:30-35g
|
Model
|
Range
|
Accuracy
|
Resolution
|
Impedance
|
Momentary
Max. Input
|
Power
Supply
|
|
XL3DC99V
|
8.0-30.0vdc
|
±1%
|
0.1V
|
100kΩ
|
±35V
|
8.0-30.0VDC
|
|
XL3DC99V-1
|
9.99vdc
|
±1%
|
10mV
|
100kΩ
|
±300V
|
5v/12vdc, 8-28vdc
|
|
XL3DC99V-2
|
99.9vdc
|
±1%
|
100mV
|
100kΩ
|
±300V
|
5v/12vdc, 8-28vdc
|
|
XL3DC99V-3
|
200vdc
|
±1%
|
1V
|
100kΩ
|
±300V
|
5v/12vdc, 8-28vdc
|
|
