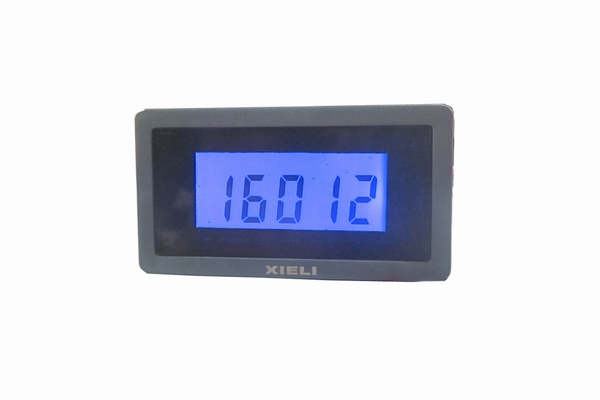

Introduction:XL41LCDV LCD Display DC Digital Voltmeter
Power Supply:DC5V
Dimension(mm):W79×H42×D25
Mounting hole(mm):76×39.5
Install method: Inlay
Maximum Count:19999(4 1/2 digit)
Display:Ultra-bright LCD display
Color:Orange,White,Blue,Green displays available
Character Height:15mm
Operating temperature:0℃~60℃
Storage Temperature:-20℃~80℃
Relative humidity:20%~80%
Weight:50~55g
Sample Frequency:400ms
|
Model
|
Digit display
|
Full measurement
|
Resolution
|
Accuracy
|
Input impedance
|
Max.input value
|
Power Supply
|
|
XL41LCDV-1
|
4½
|
±199.99mV
|
10μV
|
±0.05 % +3Digit
|
10MΩ
|
±35V
|
DC 5V
|
|
XL41LCDV-2
|
4½
|
±1.9999V
|
0.1mV
|
±0.05 % +3Digit
|
10MΩ
|
±35V
|
DC 5V
|
|
XL41LCDV-3
|
4½
|
±19.999V
|
1mV
|
±0.05 % +3Digit
|
10MΩ
|
±250V
|
DC 5V
|
|
XL41LCDV-4
|
4½
|
±199.99V
|
10mV
|
±0.05 % +3Digit
|
10MΩ
|
±500V
|
DC 5V
|
|
