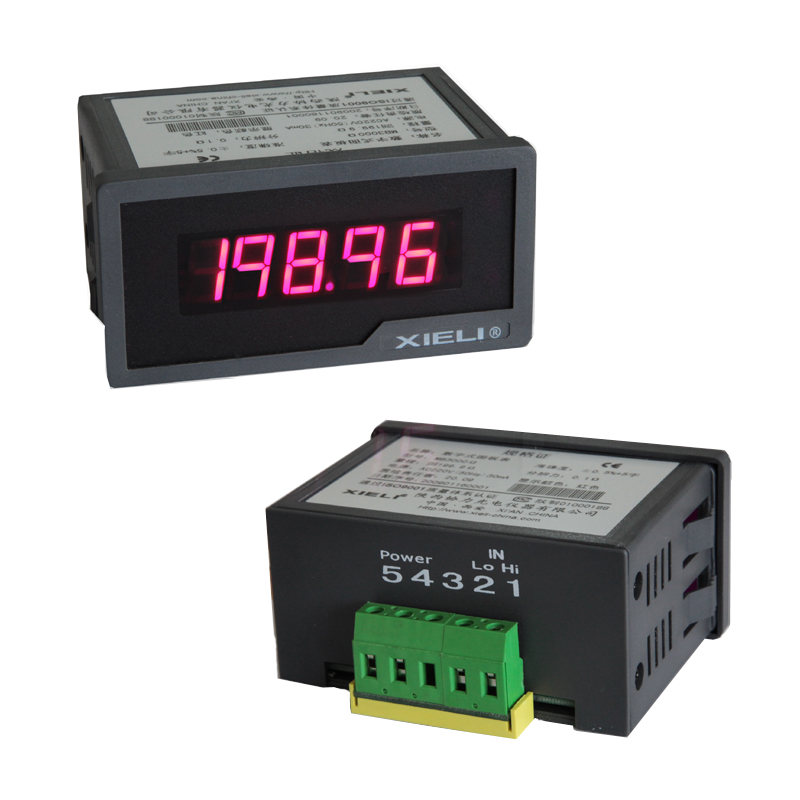

XL1000 Series Digital pulse counter
Power Supply: AC220V±10%
Max. counting: 99999
Display: 5 digit / 0.56" Red
LED
Active signal: TTL pulse signal, or
On/Off switch signal
*Output: Hi/Lo limit 1 relay output [XL1002J]
Hi/Lo active value setting by panel
button
Mounting method: Snap-in
Mounting hole: w90 x h45mm
Dimension: W96×H48×D77mm
Weight:300g
Operating temperature:0℃~60℃
Storage Temperature:-20℃~80℃
Relative humidity:20%~80%
|
Model
|
Measuring Range
|
Accuracy
|
Signal
|
Terminal Output
|
Default Power
|
|
XL1001J
|
99999
|
±0.01%
|
TTL high/low level, On/Off
switch
|
None
|
220vac
|
|
XL1002J
|
99999
|
±0.01%
|
TTL high/low level, On/Off
switch
|
Relay switch(120v,3A)
|
220vac
|
|
