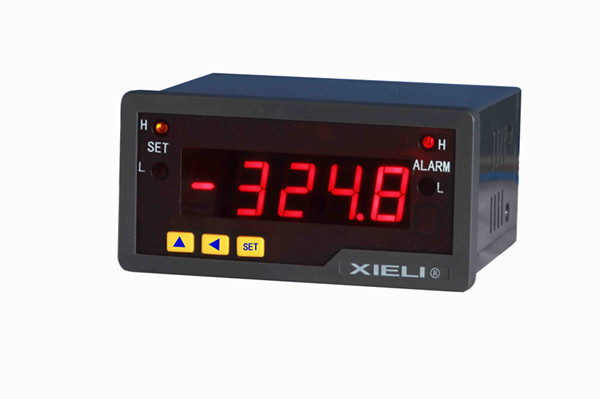

MB3800 Series Digital control panel
meter
Power Supply:AC220V±10%
Display: 1999 (3 1/2 digit) 0.56" Red LED
Color:Red,Blue,Green display color available
Sample Frequency:400ms
Install method: Snap-in
Output: Hi/Lo limit relay output [24vdc/120vac, 3A]
4-20mA output [optional]
Hi/Lo active value setting by panel button
Mounting hole: w90 x h45mm
Dimension: W96×H48×D77mm
Weight:320g
Operating temperature:0℃~60℃
Storage Temperature:-20℃~80℃
Relative humidity:20%~80%
|
Model No.
|
Range
|
Resolution
|
Max. Input
|
Accuracy
|
Power
|
|
MB3801
|
±199.9mV
|
100μV
|
±10V
|
±1%+3
|
220V/120VAC
|
|
MB3802
|
±1.999V
|
1mV
|
±35V
|
±1%+3
|
220V/120VAC
|
|
MB3803
|
±19.99V
|
10mV
|
±250V
|
±1%+3
|
220V/120VAC
|
|
MB3804
|
±199.9V
|
100mV
|
±400V
|
±1%+3
|
220V/120VAC
|
|
MB3805
|
±300V
|
1V
|
±500V
|
±1%+3
|
220V/120VAC
|
|
